12 x 16 Horse Shelter

12 x 16 Horse Shelter

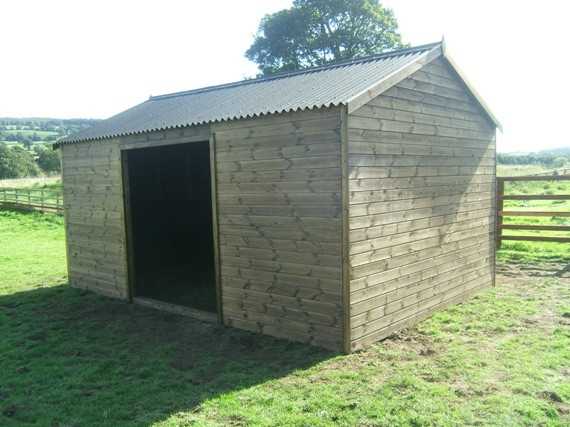

Our 16' x 12' Horse Shelter is built to last, made with high quality robust timbers and lined inside with exterior ply to make it extra strong and give the field shelter and excellent finish.

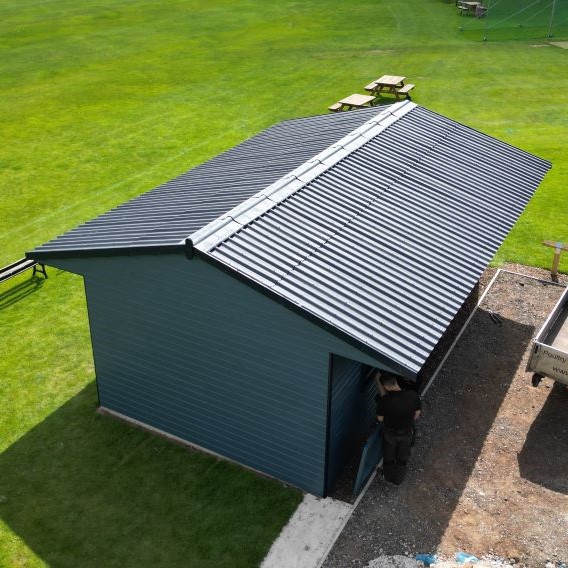

We are currently offering a free roof upgrade on our equestrian buildings from our classic Onduline roof to an anthracite grey Duro roof. Please click here for more information.

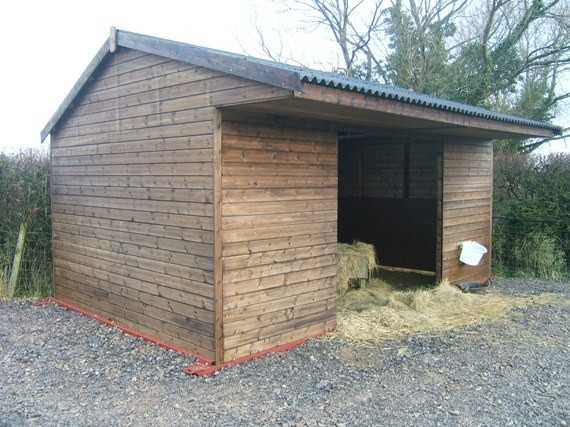

This 16' x 12' field shelter can be made with an optional 3' overhang to give your ponies and horses extra protection from the elements. On our horse shelters we make the overhang with a smart tongue and groove under boarding to give the field shelter the perfect finish. Unlike many field shelter manufacturers, we construct our horse shelters using 25mm redwood tongue and groove for superior durability.

All our field shelters come with genuine black corrugated onduline roofing in the double resin range, and you can select the addition of a clear roof panel if needed. While we offer standard sizes, each shelter is made to order, allowing for tailored designs to meet your specific needs.

For mobility, you can opt for red oxide painted skids with sturdy steel construction (100 x 100mm box section and the cross bars are 50 x 50mm, with tow points in each corner). The shelter's 8' wide opening can be tailored to your requirements, and we offer both galvanised metal gates and wooden gates.

Please note that our shelters are delivered in flat sections for customer assembly, and we provide pre-drilled holes and all necessary fixings. If assembly service is preferred, consider accessibility for our team's safety, as the panels are heavy.

Due to our made-to-order process, lead times vary by season.

Visit our delivery information page for details.  Contact us here call us 01630 673 747 for bespoke options or to discuss your requirements.


Size - 16' wide x 12' deep x 10' high (4.8m x 3.65 x 3.05m high at the ridge)

7'6" (2.3m) at the eaves

Opening - 8' wide (2.44m wide)


Your Price:
£3,199.00 inc. VAT
Your Total:
Quantity:

Additions

Assembly Service within 25m of access
Assembly Service within 25m of access
£205.00 inc. VAT
Red Oxide Metal Skids
Red Oxide Metal Skids
£680.00 inc. VAT
3ft Overhang
3ft Overhang
£541.00 inc. VAT
Clear Roof Sheet
Clear Roof Sheet
£55.00 inc. VAT

Important Note: The price shown does not include delivery. Delivery costs can calculated in the basket and at checkout.

Construction
  • 75mm x 50mm smooth planed framing
  • Clad in 19mm Vth's redwood smooth planed tongue and groove boarding (size after sawing 25mm nominal size)
  • Lined to 1.2m with 12mm premium hardwood smooth faced ply board
  • Optional Metal Skids - 100 x 100mm x 3mm box section with 50 x 50mm x 3mm cross bars either painted or galvanised
  • Dipped in Protek Premium grade, which is a water based wax enriched wood protection using a sophisticated formulation combining a high quality acrylic co-polymer with a paraffin wax giving good light fastness and weather resistance after initial drying period. It is recommended that this product is retreated with a top coat within 12 months.
